The Yellowstone Magma Reservoir: A Key To Understanding Future Volcanic Events

Aria Freeman

5 min read

Post on May 27, 2025

4.5

Share

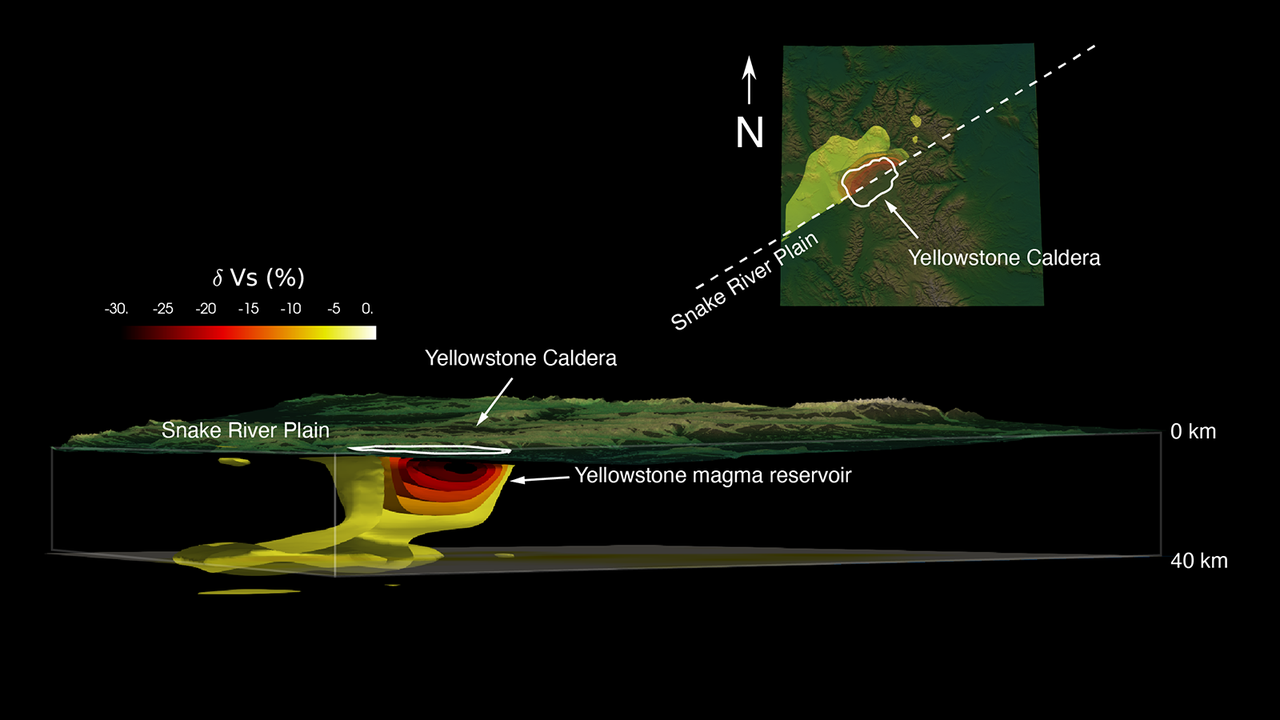

The Size and Structure of the Yellowstone Magma Reservoir

The Yellowstone Magma Reservoir is a colossal system, far larger than initially thought. Scientists believe it extends across a vast area beneath Yellowstone National Park and beyond, stretching for tens of kilometers. Instead of a single, monolithic chamber, the reservoir is likely composed of multiple interconnected magma chambers and sills at varying depths, creating a complex three-dimensional structure. Accurately mapping the entire reservoir presents significant challenges due to its depth and the limitations of current geophysical techniques.

• Estimated volume of magma: Estimates vary, but the total volume of molten rock within the system is thought to be in the hundreds of cubic kilometers. This massive volume is a testament to the immense geothermal energy contained within the Yellowstone hotspot.
• Depth and extent of the reservoir: The top of the reservoir is estimated to be approximately 8 kilometers below the surface, while its deepest parts could reach depths exceeding 15 kilometers. Its lateral extent is still being refined through ongoing research.
• Use of seismic imaging, GPS data, and other techniques for mapping: Scientists utilize various advanced techniques to image the subsurface structure, including seismic tomography (which uses earthquake waves), GPS measurements to detect ground deformation, and gravity and magnetic surveys. These methods help create a three-dimensional model of the reservoir's structure and distribution of magma.
• Areas of higher magma concentration: While the entire system is significant, some areas show higher concentrations of molten rock, suggesting potential areas of greater eruptive risk.

Composition and Characteristics of the Magma

The magma within the Yellowstone Magma Reservoir is predominantly rhyolitic, a highly viscous type of magma rich in silica. This high viscosity is a crucial factor influencing the style of potential eruptions. Rhyolitic magma tends to trap gases, leading to the build-up of significant pressure. This pressure can result in highly explosive eruptions, unlike basaltic magmas which tend to produce less violent, effusive eruptions. The presence of significant amounts of dissolved gases, primarily water vapor, carbon dioxide, and sulfur dioxide, further enhances the explosive potential of the magma.

• Viscosity of the magma: The high silica content makes the Yellowstone magma exceptionally viscous, like thick honey, hindering its flow.
• Gas content and pressure: The trapped gases significantly increase pressure within the magma chamber, potentially leading to explosive eruptions.
• Potential for explosive eruptions vs. effusive eruptions: Due to the high viscosity and gas content, future eruptions at Yellowstone are more likely to be explosive, potentially producing ash plumes and pyroclastic flows.
• Chemical analysis of the magma: Chemical analysis of volcanic gases and erupted materials helps scientists understand the composition and evolution of the magma reservoir over time.

Monitoring the Yellowstone Magma Reservoir

The USGS (United States Geological Survey) and other scientific organizations employ a sophisticated network of monitoring tools to track the activity of the Yellowstone Magma Reservoir. This continuous monitoring is crucial for detecting subtle changes that could signal an impending eruption. The main methods employed include:

• GPS measurements of ground uplift and subsidence: Changes in the ground surface elevation are carefully monitored using GPS networks, providing insights into magma movement beneath the surface. Uplift can indicate magma accumulation.
• Seismometers to detect earthquakes: A dense network of seismometers constantly records seismic activity, helping to pinpoint areas of increased stress and potential magma movement. Swarms of small earthquakes can be a precursor to volcanic activity.
• Gas monitoring stations measuring CO2, SO2, and other gases: Changes in the concentration of gases like carbon dioxide and sulfur dioxide released from hydrothermal vents and fumaroles can indicate changes in the magma reservoir's pressure and composition.
• InSAR (Interferometric Synthetic Aperture Radar) technology: InSAR uses satellite data to measure ground deformation with high precision, complementing ground-based GPS measurements.

Predicting Future Volcanic Events

Predicting volcanic eruptions, even with advanced monitoring, remains a significant challenge. While scientists can identify precursors, translating these into precise eruption forecasts is difficult. The probability of a major eruption at Yellowstone within the next few centuries is considered relatively low, but not impossible. Continued monitoring and research are crucial to refining our predictive capabilities and improving hazard assessments.

• Probabilistic models used for eruption forecasting: Scientists use probabilistic models, incorporating historical data and current monitoring information, to estimate the likelihood of future eruptions on various timescales.
• Time scales for potential future eruptions: While a major eruption is not imminent, the time scales for potential future events are on the order of decades to centuries.
• Potential impacts of future eruptions: A large eruption at Yellowstone could have significant regional and global impacts, including widespread ashfall, disruption of air travel, and climate change effects.

Conclusion

The Yellowstone Magma Reservoir remains a subject of intense scientific study. While predicting the precise timing and scale of future volcanic events is challenging, ongoing monitoring using sophisticated techniques provides crucial insights. Understanding the size, composition, and dynamics of the Yellowstone Magma Reservoir is essential for mitigating potential risks and ensuring public safety. Continued research and advancements in monitoring technology are vital for refining our understanding of this fascinating and potentially hazardous geological feature. Learn more about the ongoing research into the Yellowstone Magma Reservoir and contribute to our understanding of this powerful geological force.
